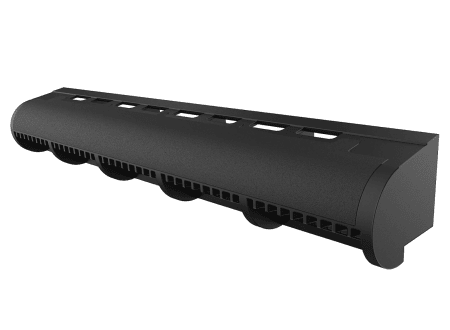

Its application depends on the pitch and design of the roof construction. The G2500N features evenly-spaced openings that prevent large insects from gaining access while allowing airflow to prevent capillary action.
This vent can be used independently or in conjunction with other VENT Systems products to create a comprehensive passive ventilation system.
Features:
Meets DTS requirements
Free open area above NCC Requirements
Redundancy for blockages
Average calculations easier to achieve NCC
Airflow rate of 25,000mm²
Free open area does not reduce with application of BAL Mesh
Cost-effective Designed specifically for fascia
Load bearing:
Designed for concrete tiles
Compatible with Colorbond
Tested to AS1530.3
Spread of flame index 5
Smoke developed index 6
For application in BAL zones, the G2500N can be enhanced with an ember guard crafted from non-combustible, corrosion-resistant materials such as steel, bronze, or aluminium mesh, ensuring maximum safety. The mesh aperture conforms to Clause 3.6 of AS3859:2018, with a maximum allowable opening of 2 mm.
VENT Systems specialises in ventilation and internal moisture management. Any guidance regarding the G2500N and its ember guard should be considered alongside the latest version of AS 3859, the National Construction Code, and any local regulations. It’s essential to collaborate with building certifiers, fire engineers, or specialised bush fire consultants to ensure compliance and safety in all applications.
