Kingspan Watergate Plus Wall Wrap
Synthetic wall wrap specifically designed as a pliable building membrane behind exterior wall cladding. Thermakraft Watergate Plus is fire retardant, water resistant and vapour permeable.
Out of stock Out of stock Out of stock
$128.25 - $234.27
$142.50
$128.25
$234.27
Dimensions
Select Dimensions
Product Details
Product Description
Kingspan Thermakraft Watergate Plus is specifically designed as a pliable building membrane behind exterior wall cladding. Made from synthetic materials, Kingspan Thermakraft Watergate Plus is fire retardant, water resistant and vapour permeable.
Kingspan Thermakraft Watergate Plus is a laminated pliable building membrane, designed to allow water vapour to pass through from inside the wall cavity, whilst water from the exterior is kept out.
The water vapour transfer rate of the product has been optimised to minimise condensation risk in homes without compromising its primary water barrier properties. Its unique construction allows for easier installation, while maintaining performance qualities.

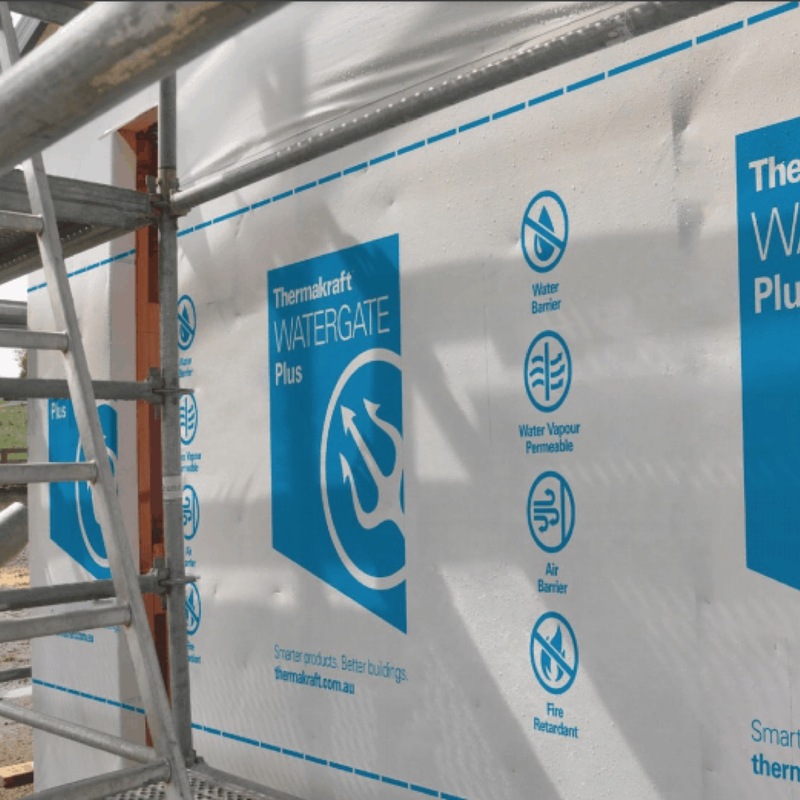

The product is simply fixed to timber framing using construction staples and is made to stretch around corners providing a tight fit and reducing the risk of staple tear. It will provide temporary weather protection during construction.
Scope of use
Watergate Plus can be used as a wall wrap on both residential and commercial buildings within the following scope:
- Class 1 and Class 10 buildings; and,
- Class 2 to Class 9 buildings subject to specific weathertightness design; and,
- Constructed with timber and steel framing in accordance with the BCA; and
- With absorbent (e.g. timber, brick or fibre cement) or non-absorbent wall claddings (e.g. metal or plastic) directly fixed to framing; or installed over an 18mm minimum drained cavity; and
- With masonry veneer in accordance with BCA; and
- Situated in non-cyclonic wind zones up to, and including N3.
- Is suitable to be used in conjunction with thermal breaks on steel framed buildings.
General
- Fire retardant
- Water resistant
- Vapour permeable
Limitations
- Must not be used as a roof sarking.
- Kingspan Thermakraft Watergate Plus is not designed to withstand prolonged exposure to the weather elements.
- The exterior wall cladding should be installed within 60 days.
- Areas that are damaged should be repaired or replaced prior to the installation of the exterior cladding.
- Kingspan Thermakraft Watergate Plus is not a vapour barrier.
Compliance
- When Kingspan Thermakraft Watergate Plus wall wrap is used,installed and maintained in accordance with the statements and
- conditions outlined in Kingspan Insulation literature, the product will contribute to meeting the following provisions of the NCC:
- NCC 2022 Volume 1
- Part F3P1 – Weatherproofing
- Part F8P1 – Condensation and water vapour management
- Part G5P1 – Bushfire resistance
- NCC 2022 Volume 2
- Part H2P2 – Weatherproofing
- Part H4P7 – Condensation and water vapour management
- Part H7P5 – Buildings in bushfire prone areas
Durability
Kingspan Thermakraft Watergate Plus is expected to have a serviceable life equal to that of the wall cladding provided it is:
- Not damaged.
- Installed in accordance with instruction guide.
- Not left exposed to the weather for more than 60 days prior to exterior wall cladding installation, and any areas that are damaged are repaired or replaced.
- Installed strictly in accordance with AS/NZS 4200.2:2017 (pliable building membranes and underlays – part 2: installation), in addition to the Kingspan installation guide.
- Compatible with cladding system used.*
- * Note: Specifiers and product user must test for wall cladding system compatibility with the membrane before installation.
